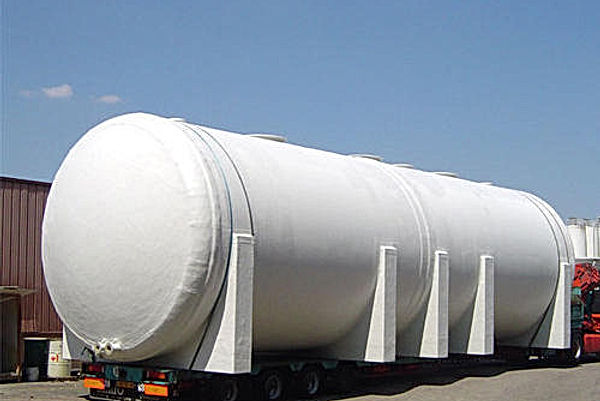

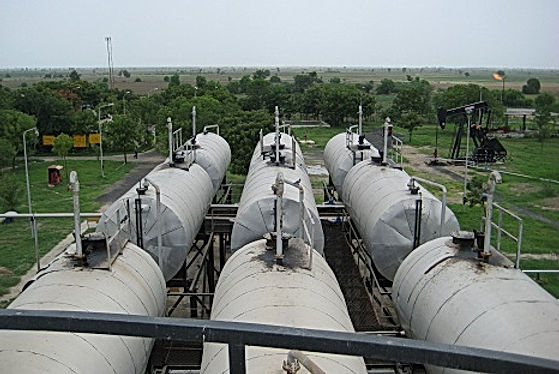

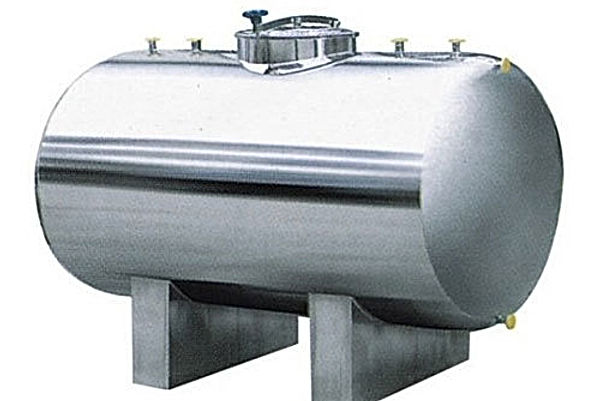

Horizontal Storage Tank
Design Standard: IS 10987 & Good Engineering practice
Types: Cylindrical & Corrugated Rectangular
Capacity: Up to 120 m³
Major MOC: IS 2062/ SA 516 Gr. 70 With inside Epoxy coating or Glass reinforced Vinyl Ester Paint.
Internal Coil: For Heating of the Stored liquid
Insulation: Rock wool or Glass Wool
Vessel Internal: Stilling Well, Heating coil, Guide control for the instruments, Vortex Breakers
Operation area: Monkey ladder With cage, Operator Platform, Dip hatch, Manhole
Safety & Instrumentation: Pressure Vaccum Relief Valve, Flame Arrestor with Goose neck vent, Level Transmitters, Pressure transmitters, Spray Sprinklers for Fire safety
