Project

EPC & LSTK Projects

Provision of surface facility services for Tuka 1z, SL-1, SW-1, Guda South 7, and NP field in RJ-ON-90/01 Block, Rajasthan on EPC and LSTK basis.

Construction, Pre-Commissioning, and Commissioning completed at 1000 BBL Tukaram-1Z Quick production facility project, Satellite field, Cairn Oil and Gas. Complete EPC scope executed by S.Mark Engineering (I) Pvt. Ltd.

Design, Manufacturing, Supply, Installation & Commissioning Horizontal 2ɸ Separator

Process Capacity: 100,000 BOPD, 2.5 MMSCMD @ 4 Bar
Internals: DSS bifurcator, sand jet system, vane pack, & vortex breaker
Instrumentation: radar type LT, LG, PG, PSV
Surface features: Internal glass coating, electrical heat traced, insulation

Chemical Dosing & Filtration System

Project : Design, manufacturing, supply and installation of chemical dosing system along with site electrification

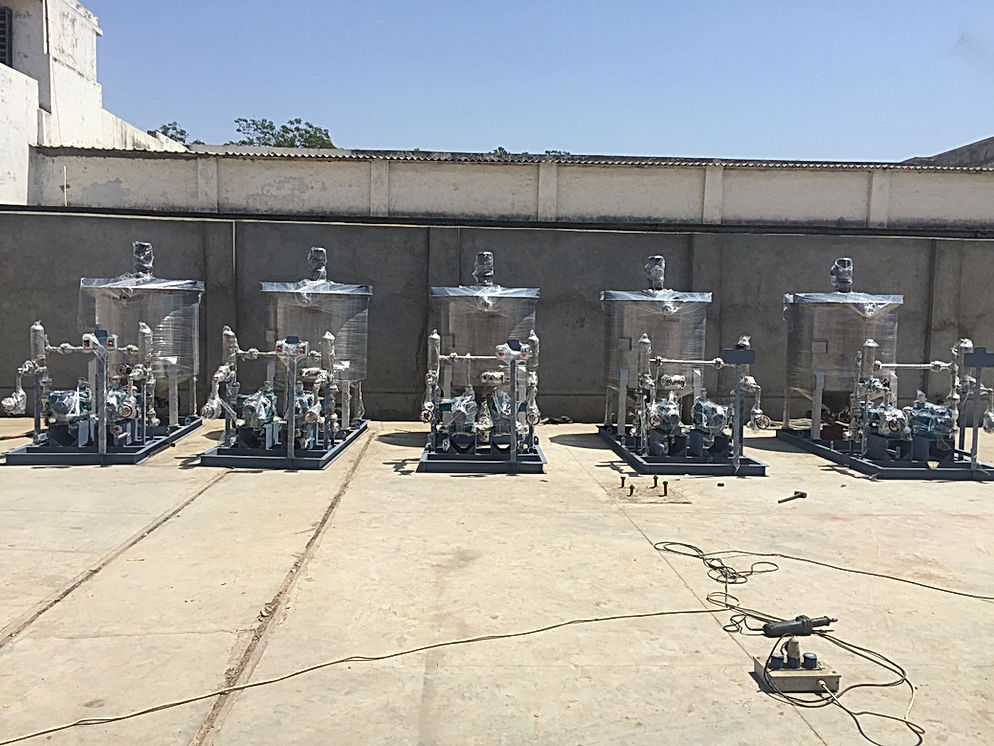

CHEMICAL DOSING SKIDS – 40 nos

  • Installation, erection and commissioning of CDS designed as plug and play skids at 8 sites.
  • 1 m³ tanks with 5 – 300 LPH dosing @ 4 kg/cm2
    DEMULSIFIER DOSING SKIDS – 9 nos
  • Installation, erection and commissioning of CDS designed as plug and play skids at 9 sites.
  • 1 m³ tanks with 0 – 10 LPH dosing @ 10 kg/cm2
    FILTRATION SYSTEM SKIDS – 2 nos
  • 3 stage filtration to 3um with 2 trains – 1W+1S System
  • Flow rate of 50m³/h3 @ 5kg/cm2

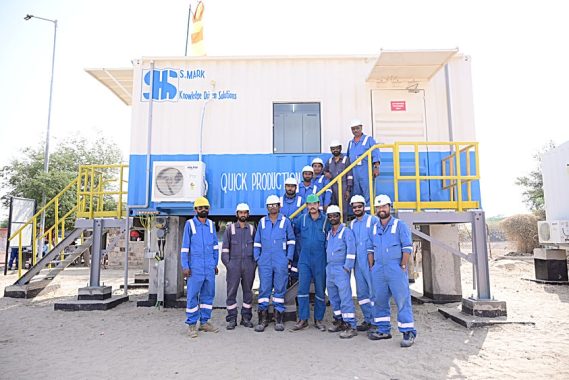

Rajasthan : Quick Production Facility

Project : Design, manufacture, construct, install and commission QPF in EPC contract

  • Process packages (3-ph separator, IBH, KOD, WSD, well header), Civil (sheds, water tank), mechanical (piping, skids, loading pumps, etc.), electrical (PMCC E-house, cabling, lighting), instrumentation (control panel, automation), fire fighting system (tank, pumps, hydrants), flare stack (30m)
  • Commissioning and operating the system for 1 month

Early and Quick Production Facility Oil and Gas EPC project on LSTK Basis

S. Mark has extensive experience in successfully executing LSTK Projects in the oil and gas sector

S. Mark has executed several EPF/QPF projects involving:

  • FEED, Process Design, System Design, Detail Engineering
  • Design, manufacturing, installation and commissioning
  • Packages, E&I Panels, Automation and Electrification
  • Mechanical, instrument, electrical & civil Jobs

TEST Separator + Metering Skid

Process Capacity: 100,000 BOPD, 2.5 MMSCMD @ 4 Bar
Internals: DSS bifurcator, sand jet system, vane pack, & vortex breaker
Instrumentation: radar type LT, LG, PG, PSV
Surface features: Internal glass coating, electrical heat traced, insulation.
EIL Approved: vessels, skid, piping package

Bath Heater & Heater Treater

S. Mark has designed, manufactured, installed and commissioned Bath Heater, Heater Treater & Heat Exchanger having different sizes & handling capacities
S. Mark equipment and solutions comply to OMR, DGMS and OISD regulations, in addition to client specific requirements
Client :- Selan Oil, GSPC, Cairn, HOEC, ONGC, JTI

Chemical Injection Skid Design, Manufacturing & Supply

Scope: Design, manufacturing supply and installation of chemical injection skids

  • Fabrication
  • Electrical & Instrumentation
  • Rotary equipment Chemicals
  • Corrosion Inhibitor
  • Demulsifier
  • Biocide
  • Wax Inhibitor
  • Scale Inhibitor

Dozing Rate: 100LPH to 350LPH
MOC: SS316L (Tank, piping, valves)
Class: 300# – 1500#

SRS Sharjah Fuel Loading & Metering Skids

DESIGN, ENGINEERING, INTEGRATION, FAT AND SUPPLY OF LOADING SKID – 6 no’s
LOADING TECHNOLOGY: 3 no’s of bottom loading arms
PROCESS FLUID: Gasoline, Acetic Acid, Fuel Oil, Ethyl Acetate, Bitumen, Methanol, Ortho-xylene
MECHANICAL: 150 Class, 100% galvanized structure
INSTRUMENTATION: MFM, PDM, Batch controller, transmitters, control valves
