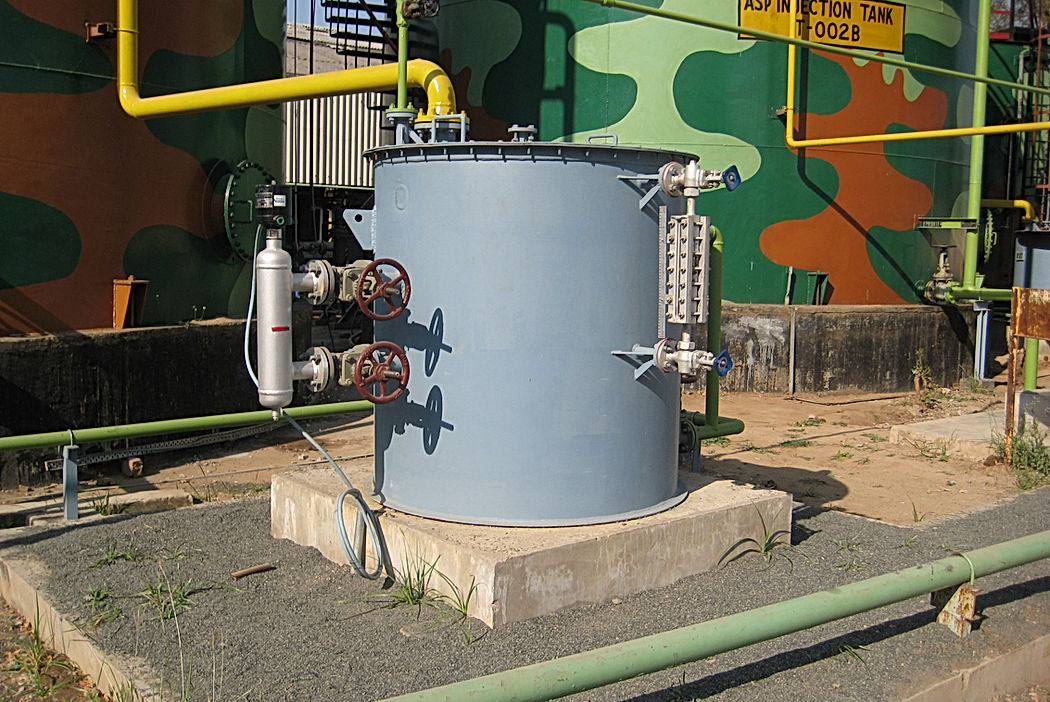

Liquid Seal Drum
Function: seal drums, which are a specially designed vessel containing a predetermined level of water in the base of the drum. The main purpose of the liquid seal drum in a flare line is to stop flame propagation in the unlikely event of flashback
Design Code: API 521 & ASME VIII Div 1
Operating Range: 5 PSI to 15 PSI
Orientation:Vertical
Skid Based option: Yes
Heat tracing & Insulation option : Electrical Type tracing & Rock wool or Glasswool Insulation where cold can freeze the water.
Major Accessories: Vortex Breaker, Liquid Level Control, Relief Valve, Level & pressure Measuring & transmitting instruments.
